Setting Out Works

Experience setting-out a wide variety of features for construction and visual purposes. This has ranged from the installation of wooden pegs for erection of development boundary fences to highly accurate building corners for use by bricklayers on site.

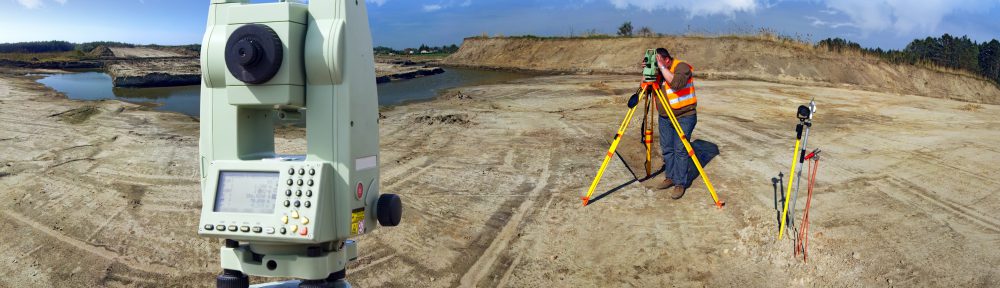

Leica Robotic Total Stations & GPS Rovers – Setting-out will be performed to an agreed accuracy using calibrated survey equipment.

Photographic setting-out reports can be produced to show the exact location and condition of surrounding features prior to construction.

Please get in touch with your setting-out requirements, we look forward to working with you.

SETOUT1

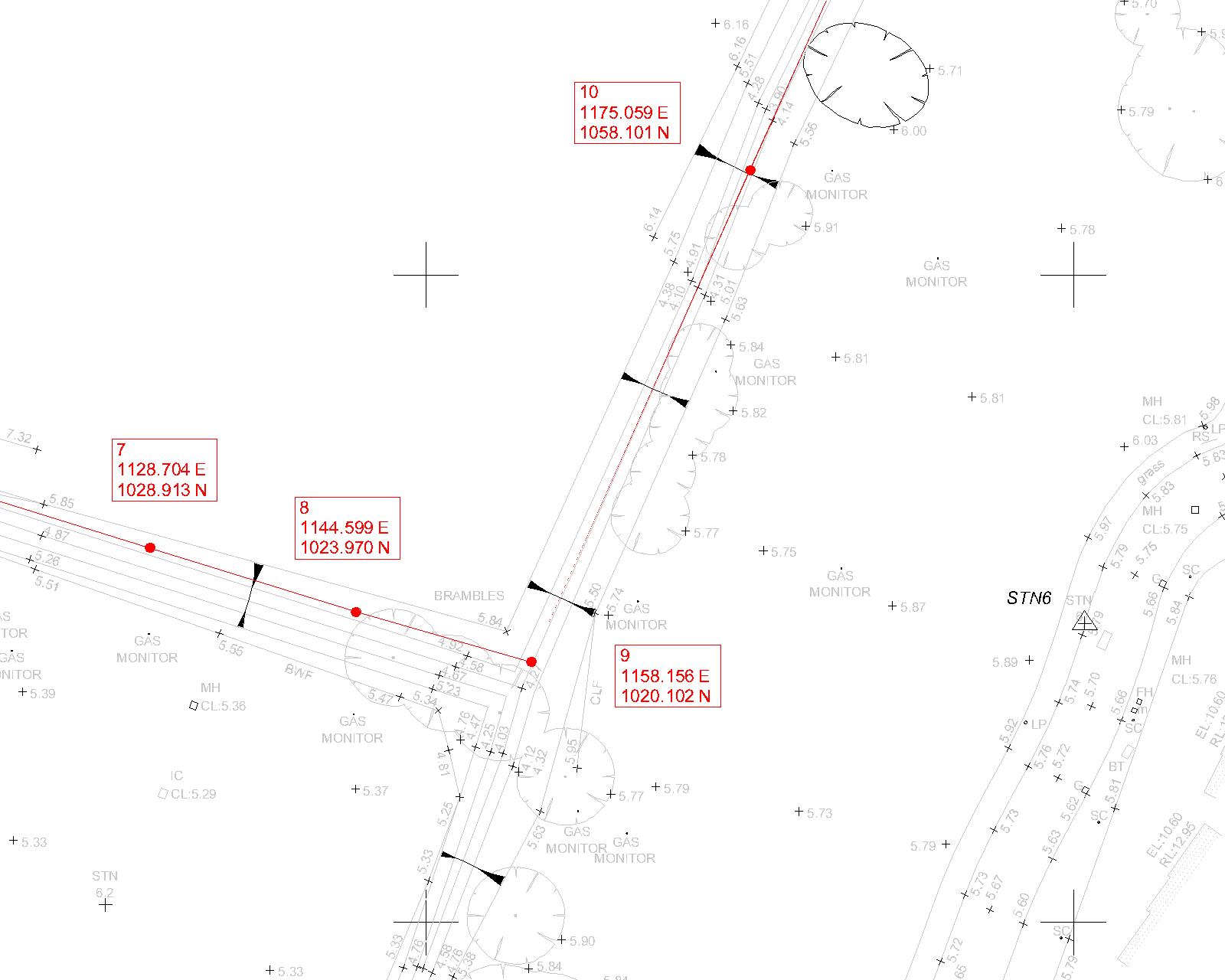

Example setting-out drawing produced by BM Land Surveys

SETOUT2

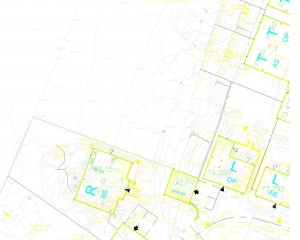

Example engineering design drawing provided for setting-out purposes
